Application
- Air,
- Water,
- Fluid

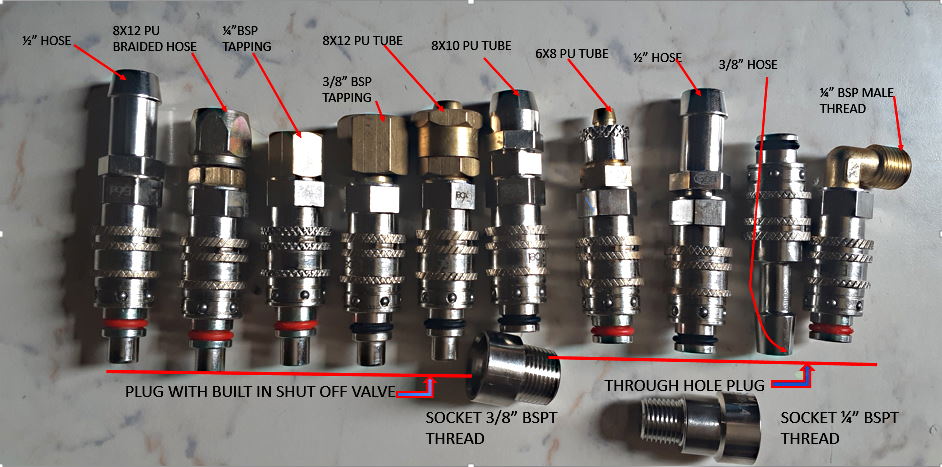

End Connections available
Hose nipple end connections suitable for 4x6 PU tubing, 6x8 PU tubing, 8x10 PU tubing, 8x12 PU tubing, 3/8” and ½” hose, 90 degree bend, etc available.
Sockets available in ¼” BSPT and 3/8” BSPT threading.
Advantages
Water/Air/oil leakage problem overcome by use of QRC.
Time required for connection and disconnection is minimized to few minutes depending upon no connections.
Cooling channel scaling problem avoided due to full flow concept.
Built in shut off valve ensures the connection/disconnection with out spillage of water/oil during tool changes.
Socket with shutoff valve: Four threaded joints reduced to one – possibility of leakage reduced by 25%. Socket guaranteed for one year subjected to GMP
Mounting: Socket can be mounted on Air Gun/other device, can be flush mounted on tool to ensure there are no damages during tool handling or storage.
Availability: Socket available in ¼” BSP and 3/8” BSP threading. Additional size are available on request.
Highlights/SILENT FEATURES
- 100% Safe – Never disconnect accidentally as requires two-way action for disconnection.
- Compact- almost half the size compared to other products available in market.
- Long term reliability
- Maintenance free – No user serviceable parts
- User friendly/Easy handling- Quick replacement- “O” ring can be replaced in <15 seconds
- Designed for long life
- Nickel Plating for wear and weather resistant
- One year Guaranty in GMP conditions
Technical specifications
Design registration no. 228887, Date 27-04-2010
Working pressure – 8 Bar
Flow channel – 8 MM
Material of construction – Brass,
Special treatment – Nickel Plating
Seal – Silicon rubber (with stand 250 0 C),
Spring – S.S.
Ball – S.S.
Product Assessment
|
|
Sarvesh Quick Release Connectors |
Other Quick Release Connectors |
|
SAFETY |
100% Safe, as dual action is required for disconnection. |
Gets disconnected if there is pull on the hose. |
|
SIZE |
Compact |
Almost double the diameter |
|
FLOW |
Full flow |
Flow restricted |
|
MAINTENANCE |
Maintenance free. Does not require any tool to replace the "O" ring. |
Maintenance required. Tools required to replace the "O" ring. |
|
DOWN TIME |
No down time. "O" ring replacement done in less than 20 sec. |
Require about 30 min to replace the "O" ring. |
|
LIFE |
Very high, Guaranteed for 1 year. |
About 3 - 4 months only. |
|
MOUNTING |
Socket can be flush mounted in plates, avoid damages during handling & prevents accidents. Sockets are fixed permanently. |
Mounted on the surface. Possibility of accidents and damages during handling. |
|
REPAIRS COST |
Negligible. Only replaceable part is "O" ring. |
Very high. |
|
COSTING |
Attractive, pays in long run. No recurring cost. |
Initial cost low, however reoccurring cost very high as life is limited to 3-4 months. |
